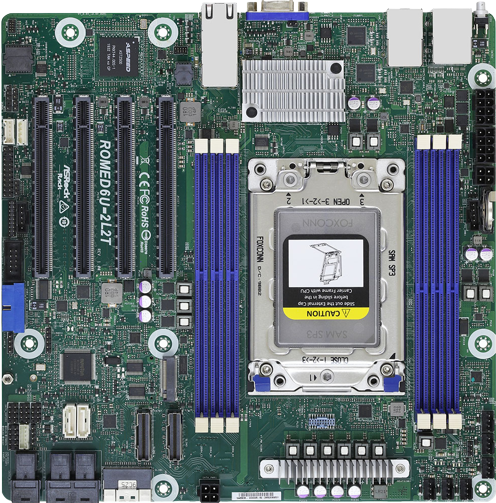

ASROCK RACK ROMED6U-2L2T
ASROCKRACK AMD 6DIMM 2*1G,2*10G, 3 GEN
System Specifications
| Physical Status | |
| Form Factor | Micro-ATX |
| Dimensions | 9.6″ x 9.6″ (244 mm x244 mm) |
| Processor System | |
| CPU | Supports AMD EPYC™ 7003 (with AMD 3D V-Cache™ Technology*)/7002 Series Processors |
| *A BIOS update is required to support AMD EPYC™ 7003 series processors with AMD 3D V-Cache™ Technology | |
| Socket | Single Socket SP3 (LGA4094) |
| Chipset | System on Chip |
| System Memory | |
| Supported DIMM Quantity | 6 DIMM slots (1DPC) |
| Supported Type | Supports DDR4 288-pin RDIMM, LRDIMM, RDIMM/LRDIMM-3DS, NVDIMM-N |
| Max. Capacity per DIMM | RDIMM: up to 64GB |
| LRDIMM: up to 128GB | |
| RDIMM/LRDIMM-3DS: up to 256GB | |
| NVDIMM-N: up to 32GB | |
| Max. DIMM Frequency | RDIMM/ LRDIMM/NVDIMM-N: max. 3200MHz |
| Voltage | 1.2V |
| PCIe Expansion Slots (SLOT7 close to CPU) | |
| PCIe x 16 | SLOT7: PCIe4.0 x16 |
| SLOT6: PCIe4.0 x16 | |
| SLOT5: PCIe4.0 x16 | |
| SLOT4: PCIe4.0 x16 | |
| Other PCIe Expansion Connectors | |
| M.2 slot | 1 M-key (PCIe4.0 x4 or SATA 6Gb/s); support 2280 form factor |
| 1 M-key (PCIe4.0 x4 or SATA 6Gb/s); support 2260 form factor [BTO] | |
| Others | 1 SlimSAS (PCIe4.0 x8) |
| 2 SlimSAS (PCIe4.0 x8 or 8 SATA 6Gb/s) | |
| SATA/SAS Storage | |
| PCH Built-in Storage | AMD EPYC 7003/7002 (31 SATA 6Gb/s): |
| 2 SlimSAS, 3 Mini-SAS HD, 2 SATA 7-pin, 1 M.2 | |
| Ethernet | |
| Additional GbE Controller | 1 Intel® X710-AT2: 2 RJ45 (10GbE) |
| 2 Intel® i210: 2 RJ45 (1GbE) | |
| Server Management | |
| BMC Controller | ASPEED AST2500 |
| IPMI Dedicated GLAN | 1 x Realtek RTL8211E for dedicated management GLAN |
| Graphics | |
| Controller | ASPEED AST2500 |
| Rear I/O | |
| UID Button/LED | 1 |
| VGA Port | 1 DB15 |
| USB 3.2 Gen1 Port | 2 Type-A (USB3.2 Gen1) |
| RJ45 | 2 RJ45 (10GbE), 2 RJ45 (1GbE) |
| 1 dedicated IPMI | |
| Internal Connector/Headers | |
| Power Connector | 1(4-pin) + 2 (8-pin) support 12V DC-IN, 1 (4-pin) for HDD power |
| Auxiliary Panel Header | 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus |
| System Panel | 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED |
| COM Header | 1 |
| Speaker Header | 1 |
| Fan Header | 6 (4-pin) |
| Thermal Sensor Header | 1 |
| TPM Header | 1 (17-pin, LPC) |
| HSBP | 1 |
| SMBus header | 1 |
| PMBus header | 1 |
| IPMB Header | 1 |
| Clear CMOS | 1 (contact pads) |
| Front Lan LED Connector | LAN3/LAN4 LED header |
| USB 3.2 (Gen1) Header | 1 (19-pin, 2 USB3.2 Gen1) |
| NMI Header | 1 |
| LED Indicators | |
| Standby PWR LED 5vsb | 1 |
| Fan Fail LED | 6 |
| System BIOS | |
| BIOS Type | 32MB AMI UEFI Legal BIOS |
| Hardware Monitor | |
| Temperature | CPU, MB, Card side, LAN Temperature Sensing |
| Fan | Fan Tachometer |
| CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) | |
| Fan Multi-Speed Control | |
| Voltage | Voltage Monitoring: Vsoc,Vcpu, VCCM, VPPM, 3v/5v/12v, +BAT, 3VSB, 5VSB |
| Environment | |
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
| Humidity | Non operation humidity: 20% ~ 90% ( Non condensing) |
