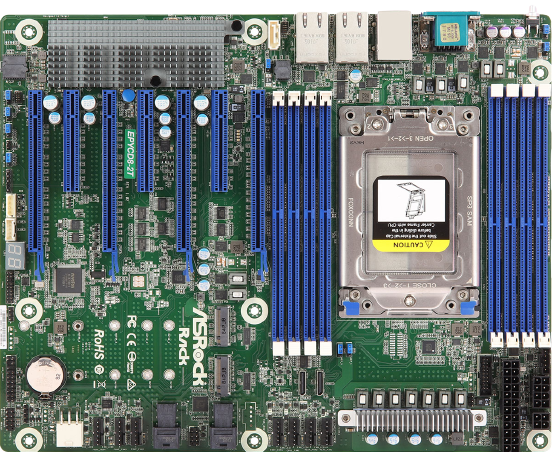

ASROCK RACK EPYCD8-2T
ASROCKRACK AMD 8DIMM 2*10G WORKSTATION
System Specifications
| Physical Status | |
| Form Factor | ATX |
| Dimensions | 12” x 9.6” (305 mm x 244 mm) |
| Processor System | |
| CPU | AMD EPYC™ 7002/7001 series processor family |
| Socket | Single Socket SP3 (LGA4094) |
| System Memory | |
| Supported DIMM Quantity | 8 DIMM slots |
| Supported Type | Eight Channel DDR4 memory technology |
| Supports DDR4 RDIMM and LRDIMM | |
| Max. Capacity per DIMM | RDIMM: 32GB, 16GB, 8GB |
| LRDIMM: 128GB, 32GB | |
| Max. DIMM Frequency | RDIMM: 3200/2933/2666/2400MHz |
| LRDIMM: 3200/2933/2666/2400MHz | |
| Voltage | 1.2V |
| PCIe Expansion Slots (SLOT7 close to CPU) | |
| PCIe x 16 | SLOT7: PCIe3.0 x16 |
| SLOT5: PCIe3.0 x16 | |
| SLOT3: PCIe3.0 x16 | |
| SLOT1: PCIe3.0 x16 | |
| PCIe x 8 | SLOT6: PCIe3.0 x8 |
| SLOT4: PCIe3.0 x8 | |
| SLOT2: PCIe3.0 x8 | |
| Other PCIe Expansion Connectors | |
| M.2 slot | 2 (M2_1: 2230/2242/2260/2280, SATA/PCIE(X4); M2_2:2230/2242/2260/2280/22110, SATA/PCIE(X4)) |
| OCuLink | 2 |
| SATA/SAS Storage | |
| PCH Built-in Storage | 9 x SATA3 6.0 Gb/s (from 2x mini SAS HD and 1x SATA DOM port) |
| Ethernet | |
| Interface | 1000 /100 /10 Mbps by Intel® i350 |
| Additional GbE Controller | 2 x RJ45 GLAN by Intel® i350 |
| 1 x RJ45 Dedicated IPMI LAN port by RTL8211E | |
| Supports Wake-On-LAN | |
| Supports Energy E_cient Ethernet 802.3az | |
| Supports Dual LAN with Teaming function | |
| Supports PXE | |
| LAN1 supports NCSI | |
| Server Management | |
| BMC Controller | ASPEED AST2500 |
| IPMI Dedicated GLAN | 1 x Realtek RTL8211E for dedicated management GLAN |
| Features | Watch Dog |
| NMI | |
| Graphics | |
| Controller | ASPEED AST2500 |
| VRAM | DDR4 128Mb |
| Rear I/O | |
| UID Button/LED | 1 |
| VGA Port | 1 x D-Sub |
| Serial Port | 1 x COM port |
| USB 3.2 Gen1 Port | 2 |
| RJ45 | 2+1 RJ45 Gigabit Ethernet LAN port |
| LAN Ports with LED (ACT/LINK LED and SPEED LED) | |
| Internal Connector/Headers | |
| Power Connector | 1 x (24-pin) + 1 x (8-pin) + 1 x (4-pin) + 1 x (6-pin)(6 pin for GPU for PCIE Slot) |
| Auxiliary Panel Header | 1 (includes chassis intrusion, location button & LED, and front LAN LED) |
| Speaker Header | 1 |
| Fan Header | 7 Fans (6-pin, 1CPU/4Front/2Rear) |
| Thermal Sensor Header | 1 |
| TPM Header | 1 |
| SMBus header | 1 |
| PMBus header | 1 |
| IPMB Header | 1 |
| Clear CMOS | 1 |
| USB 3.2 (Gen1) Header | 1 (supports 2 USB 3.0 ports) |
| LED Indicators | |
| 80 Debug Port LED | 1 |
| Fan Fail LED | 1 (only Fan Fail LED) |
| System BIOS | |
| BIOS Type | 32MB AMI UEFI Legal BIOS |
| BIOS Features | Plug and Play (PnP) |
| ACPI 2.0 Compliance Wake Up Events | |
| SMBIOS 2.8 Support | |
| ASRock Rack Instant Flash | |
| Hardware Monitor | |
| Temperature | CPU Temperature Sensing |
| MB/TR1/Card side Temperature Sensing | |
| Fan | CPU/Rear/Front Fan Tachometer |
| CPU Quiet Fan (Allow CPU Fan Speed Auto-Adjust by CPU Temperature) | |
| CPU/Rear/Front Fan Multi-Speed Control | |
| Voltage | Voltage Monitoring: Vsoc,Vcpu, VCCM, VPPM, 3V/5V/12V, +BAT, 3VSB, 5VSB |
| Supported OS | |
| OS | Microsoft® Windows: |
| Server 2012 R2 (64 bit) | |
| Server 2016 (64 bit) | |
| Linux: | |
| RedHat Enterprise Linux Server 6.9 (64 bit) / 7.3 (64 bit) | |
| CentOS 6.9 (64 bit) / 7. 3 (64 bit) | |
| SUSE Enterprise Linux Server 11 SP4 (64 bit) / 12 SP2 (64 bit) | |
| Ubuntu 16.04 (64 bit) / 17.04 (64 bit) | |
| CITRIX XenServer 7.5 | |
| Virtual: | |
| VMWare® ESXi 6.5 u1 | |
| vSphere 6.5 u1 | |
| Environment | |
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
| Humidity | Non operation humidity: 20% ~ 90% ( Non condensing) |
