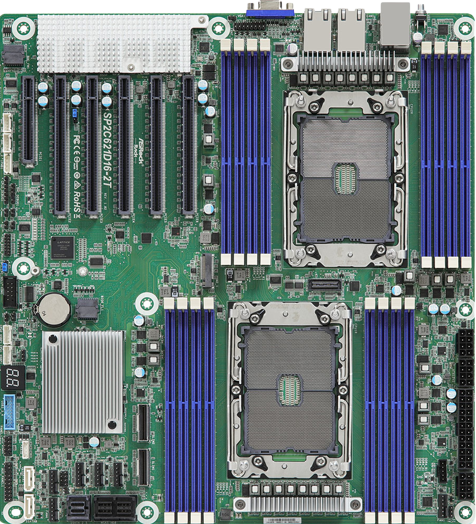

ASROCK RACK SP2C621D16-2T
ASROCKRACK INTEL 16DIMM 2*10G 3 GEN
System Specifications
| Physical Status | |
| Form Factor | EEB |
| Dimensions | 12″ x 13″ |
| Processor System | |
| CPU | Supports 3rd Gen Intel® Xeon® Scalable processors |
| Socket | Dual Socket P+ (LGA 4189) |
| Chipset | Intel® C621A |
| System Memory | |
| Supported DIMM Quantity | 8+8 DIMM slots (1DPC) |
| Supported Type | Supports DDR4 288-pin RDIMM/RDIMM-3DS/LRDIMM/LRDIMM-3DS, Intel® Optane™ Persistent Memory 200 Series |
| Max. Capacity per DIMM | RDIMM: up to 64GB |
| RDIMM-3DS: up to 256GB | |
| LRDIMM: up to 128GB | |
| LRDIMM-3DS: up to 256GB | |
| Max. DIMM Frequency | max. 3200MHz |
| Voltage | 1.2V |
| PCIe Expansion Slots (SLOT7 close to CPU) | |
| PCIe x 16 | SLOT6: PCIe4.0 x16 [CPU2] |
| SLOT5: PCIe4.0 x16 [CPU2] | |
| SLOT4: PCIe4.0 x16 [CPU2] | |
| SLOT3: PCIe4.0 x16 [CPU1] | |
| SLOT2: PCIe4.0 x16 [CPU1] | |
| PCIe x 8 | SLOT1: PCIe4.0 x8 [CPU1] |
| Other PCIe Expansion Connectors | |
| M.2 slot | 1 M-key (PCIe4.0 x4); Support 22110/2280 form factor [CPU1] |
| Others | 2 SlimSAS (PCIe4.0x8) [CPU1] |
| SATA/SAS Storage | |
| PCH Built-in Storage | Intel® C621A (14 SATA 6Gb/s, support RAID 0/1/5/10): |
| 1 Mini-SAS HD 8i, 1 Mini-SAS HD 4i, 2 SATA 7-pin | |
| Ethernet | |
| Additional GbE Controller | 2 RJ45 (10GbE) by Intel® X710 |
| Server Management | |
| BMC Controller | ASPEED AST2500 |
| IPMI Dedicated GLAN | 1 x Realtek RTL8211E for dedicated management GLAN |
| Graphics | |
| Controller | ASPEED AST2500 |
| VRAM | DDR4 16MB |
| Rear I/O | |
| UID Button/LED | 1 |
| VGA Port | 1 DB15 |
| USB 3.2 Gen1 Port | 2 Type-A (USB3.2 Gen1) |
| RJ45 | 2 RJ45 (10GbE) |
| Internal Connector/Headers | |
| Power Connector | 1 (24-pin, ATX main power), 3 ( 8-pin, ATX 12V) |
| Auxiliary Panel Header | 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus |
| System Panel | 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED |
| COM Header | 1 |
| VGA header | 1 |
| Fan Header | 4 (8-pin), 2 (6-pin) |
| TPM Header | 1 (13-pin, SPI) |
| VROC header | 1 |
| HSBP | 1 |
| SMBus header | 1 |
| PMBus header | 1 |
| Clear CMOS | 1 (contact pads) |
| USB 3.2 (Gen1) Header | 1 (19-pin, 2 USB3.2 Gen1) |
| System BIOS | |
| BIOS Type | AMI 256 Mb SPI Flash ROM |
| BIOS Features | ASRock Rack Instant Flash, ACPI 5.0, SMBIOS 2.3, Plug and Play (PnP) |
| Hardware Monitor | |
| Temperature | CPU, PCH, MB, Card side, X710 Temperature Sensing |
| Fan | CPU/Rear/Front Fan Tachometer |
| CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) | |
| CPU/Rear/Front Fan Multi-Speed Control | |
| Voltage | CPU1_PVCCIN, CPU2_PVCCIN, PVDDQ_ABCD,PVDDQ_EFGH,PVDDQ_IJKL,PVDDQ_MNOP, 1.05V_PCH,1.8V_PCH, +BAT,PVNN_PCH, 3.3V,5V,12V,3.3VSB, 5VSB |
| Supported OS | |
| OS | Microsoft® Windows® : |
| Server 2016 (64 bit) | |
| Server 2019 (64 bit) | |
| Server 2022 (64 bit) | |
| Linux : | |
| Red Hat Enterprise Linux Server 7.9 (64 bit) / 8.5 (64 bit) | |
| CentOs 7.9 (64 bit) / 8.5 (64 bit) | |
| SUSE Enterprise Linux Server 15 SP2 (64 bit) | |
| Ubuntu 20.04.2 (64 bit) / 21.04 (64 bit) / 21.10 (64 bit) | |
| Hypervisor : | |
| VMWare® ESXi 6.7.0 U3 / vSphere 6.7.0 U3 | |
| VMWare® ESXi 7.0 U3c / vSphere 7.0 U3c | |
| Environment | |
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
| Humidity | Non operation humidity: 20% ~ 90% ( Non condensing) |
