CALIBER® D62P15N304FF4 High Performance Workstation
CALIBER® D62P15N304FF4 High Performance Workstation
System Specifications
The following table lists the system specifications for CALIBER® D62P15N304FF4 High Performance Workstation
| Components | Specification |
| Chipset | 1 x Dual-socket server board featuring Intel C621A chipset supporting 2 x LGA-4189 (Socket P+) | 8 x DDR4 ECC RDIMM running at 3200 MHz | 2 x M.2 storage slots | 4 x PCI-E 4.0 x16 Slots | 8 x Variable speed fan headers | 1 x VGA video output in D-15 analog connector | 12 x SATA3 (6 Gbps) drive support| RAID level 0, 1, 1+0 support | 2 x 10GbE 10GBase-T | USB – Rear 2 x 3.2 and 3 x 3.2 | 1 x Dedicated server management port supporting IPMI v2 and Redfish |
| Processor Installed | 2 x Intel Xeon Gen3 – 6338 Processor [32 cores | 64 threads | 2.00 GHz base .. 3.20 GHz max. Turbo frequency | 48 MB cache | triple – 11.2 GT/s UPI links | 205 W TDP | 8 x memory channels | 2S scalability | PCIe Gen4.0 x64 lanes | socket P4, LGA4189 pin layout | 2 x AVX-512 FMA units | 10 nm Intel “Ice Lake” micro-architecture] |
| Processor Thermal Kit | 2 x Socket P4, LGA4189 layout actively air-cooled thermal kit |
| Memory Installed | 10 x 64 GB [640 GB] DDR4 ECC Registered Memory @ 3200 MHz |
| Storage Drive Installed | 1 x 1TB NVMe M.2 SSD for Operating System 1 x 8TB 3.5” SATA III Enterprise Hard Disk Drive |
| RAID Support | 1 x 12Gbps RAID controller card to address 128 drives |
| Graphics controller | 2 x Nvidia RTX 3080 10GB Turbo Graphics Card |
| Network controller | 2 x 10GbE 10GBase-T Ethernet Controller Ports |
| Ports | External Ports: Front – 2 x USB 2.0 | Rear: 2 x USB 3.2 ; 3 x USB 3.2 Internal Ports: 12 x SATA3 (6 Gbps) |
| PCI Expansion Slots | 4 x PCI-E 4.0 x16 Slots |

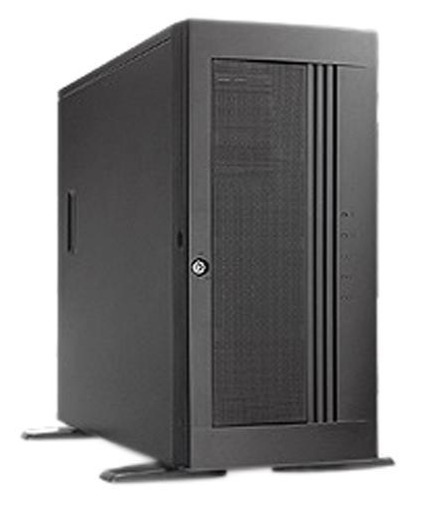

| Enclosure Form Factor and Power supply Unit | 1 x 4U/5U Tower Pedestal Chassis with 1200W 80 Plus Platinum power supply unit |
| Cables & Power cord | 1 x India style 3-pin (Plug-D) IA6A3 6A 1.8M power cord with IEC60320-C13 connector |
| Operating System | 1 x Licensed Microsoft Windows 10 Pro 64-bit and Ubuntu 64-bit operating system preinstalled Dual boot |
| Monitor | 1 x 24” Wide FHD IPS backlight LED Monitor |
| Keyboard and Mouse | 1 x USB Multimedia Keyboard & USB Optical Scroll Mouse |
| Warranty | Five years onsite warranty on the hardware against manufactrung defects |
