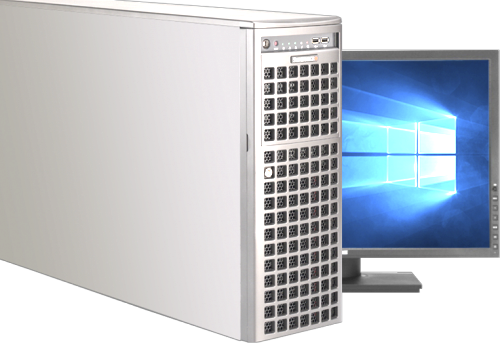

CALIBER® D62P14H308FF4 Workstation
CALIBER® D62P14H308FF4 Workstation
System Specifications
The following table lists the system specifications for CALIBER® D62P14H308FF4 Computer Workstation
| Components | Specification |
| Chipset | 1 x Dual-socket workstation board featuring Intel C621 chipset with 16 DIMM slots |
| Processor Installed | 2 x 2nd generation Intel Xeon scalable processor Gold 6248R [Specification per processor: 24 cores | 48 threads | 3.00 GHz base .. 4.00 GHz max Turbo frequency | 35.75 MB cache | 2 x 11.4 GT/s UPI links | 205 W TDP | 2S scalability | upto 48 PCIe Gen3.0 lanes | socket P-0, LGA3647 layout | 2 x AVX-512 FMA units | 14 nm Intel “Cascade Lake” micro-architecture] |
| Thermal Solution | 2 x Socket P-0, LGA3647 actively air-cooled thermal kit narrow ILM |
| Memory Installed | 3 x 32 GB [96 GB] DDR4 ECC registered 2933 MHz Memory |
| Storage Drive Installed | 1 x 480 GB datacenter edition Solid State Drive 4 x 6 TB SATA 6 Gb/s 7,200 RPM 3.5″ (LFF) Hard Disk Drive |
| Optical Drive | 1 x 5.25″ internal SATA DVD+RW drive standard profile |
| Raid Controller | 1 x LSI SAS 3108 PCIe SAS 12 Gb/s RAID controller with 2 GB cache supporting RAID levels 0, 1, 5, 6, 1+0, 5+0, 6+0 |
| Network Controller | 1 x Ethernet controller 10GBase-T (10 GbE) Cu RJ-45 (2) ports |
| Graphics Controller | 1 x Onboard ASPeed AST2500 graphics controller with DB-15 analog VGA port |
| Server Management | 1 x Server management featuring IPMI 2.0 compliance with virtual media over LAN, KVM-over-LAN |
| Enclosure Form Factor and Power supply Unit | 1 x Pedestal (4U rackmount convertible) workstation enclosure with 8 x 3.5″ hot-swap drive bays and 1200 W 80+ Platinum rated power supply unit |
| Expansion slots | 6 x PCIe Gen3.0 x16; 1 x PCIe Gen3.0 x8 |
| Ports | 5 x USB 3.0, 1 x DB-15 analog VGA |
| Operating System | 1 x CentOS 8.5 x86_64 operating system |
| Cables & Power cord | 1 x India style 3-pin (Plug-D) IA6A3 6A 250V 1.8M power cord with IEC60320-C13 connector |
| Warranty | 3 years onsite warranty on supplied hardware against manufacturing defects |
