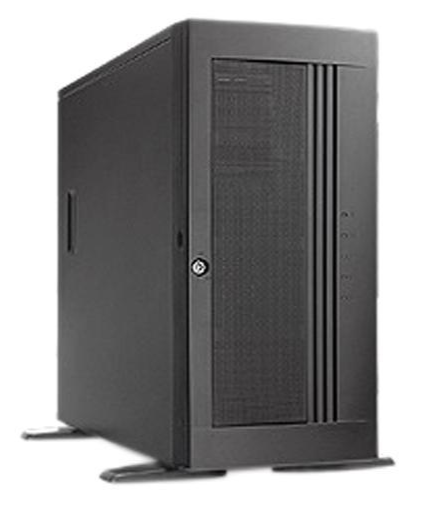

CALIBER® D62P15H304MK4 Workstation
CALIBER® D62P15H304MK4 Workstation
System Specifications
The following table lists the system specifications for CALIBER® D62P15H304MK4 Workstation
| Components | Specification |
| Chipset | 1 x Dual processor motherboard featuring Intel C621A chipset supporting Dual Socket P+ (LGA 4189) | 16 x DDR4 ECC RDIMM memory running at 3200 MHz | 1 x M.2 storage slots | 5 x PCIe x16 Gen4.0 Slots + 1 x PCIe x8 Gen4.0 Slot | 8 x Variable speed fan headers | 1 x VGA Video output in D-15 analogue connector & HDMI | 14 x SATA-3 6Gbps drive support | RAID 5 3HDD for Windows | 2 x RJ45 (1GbE) Ethernet | USB – Rear 2 x 3.2 and 2 x 3.2 through header | 1 x Dedicated server management port supporting IPMI v2 and Redfish with media redirection capability |
| Processor Installed | 2 x 3rd Generation Intel Xeon Scalable Platinum 8360Y Processor [36 Cores | 72 Threads | Processor Base Frequency 2.40 GHz | Max Turbo Frequency 3.50 GHz | 54 MB Cache | 250 W TDP] |
| Processor Thermal Kit | 2 x FCLGA4189 actively air-cooled thermal kit |
| Memory Installed | 16 x 64 GB [1024 GB] DDR4 ECC Registered 3200 MHz Memory |
| Storage Drive Installed | 1 x 1TB NVMe M.2 SSD for operating system 1 x 8TB 3.5” SATA III Enterprise HDD |
| Graphics controller | 1 x Nvidia RTX A6000 48GB GDDR6 GPU with error-correcting code (ECC) |
| Network controller | 2 x 10Gbe 10G Base-T add-on Ethernet Card |
| Ports | Front – 2 x USB 3.0 ; Rear – 2 x USB 3.0 ; 14 x SATA 6Gbps |
| PCI Expansion Slots | 5 x PCIe x16 Gen3.0 ; 1 x PCIe x8 Gen 3.0 |
| Enclosure Form Factor and Power supply Unit | 1 x 4U/5U Rack convertible Pedestal Chassis with 2000 W RPS 80 PLUS Platinum power supply unit |
| Cables & Power cord | 2 x India type (Plug-D) IA6A3 6A 250V 1.8M power cord with IEC60320-C13 connector |
| Operating System | 1 x Microsoft Windows Server 2019 Std edition operating system pre-installed with media and license |
| Monitor | 1 x 24” Wide FHD IPS backlight LED Monitor |
| Keyboard and Mouse | 1 x USB Multi Media Keyboard & USB Optical scroll Mouse |
| Warranty | Five years onsite warranty on the workstation |
