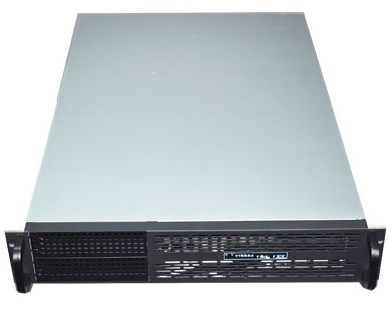

Resilienté® 62DRM Compute server
Resilienté® 62DRM Compute server
System Specifications
The following table lists the system specifications for Resilienté® 62DRM Compute server
| Components | Specification |
| Chipset | 1 x Dual-socket server board featuring Intel C624 chipset |
| Processor Installed | 2 x 2nd generation Intel Xeon scalable processor Silver 4216 [16 cores | 32 threads | 2.10 GHz base .. 3.20 GHz max Turbo frequency | 22 MB cache | 2 x 9.6 GT/s UPI links | 100 W TDP | 2S scalability | socket LGA3647 | 1 x AVX-512 FMA unit | 14 nm Intel “Cascade Lake” micro-architecture |
| Processor Thermal Kit | 2 x LGA3647 actively air-cooled thermal kit for 2U rack form-factor |
| Memory Installed | 2 x 64 GB DDR4 ECC registered 2400 MHz memory [2 x 64 GB, or 4 x 32 GB = 128 GB total memory installed] |
| Storage Drive Installed | 2 x 960 GB 2.5″ SATA Solid State Drive |
| Network controller | 1 x Ethernet controller dual 10GBase-T (10 GbE) Cu RJ-45 (2) ports |
| Graphic controller | 1 x 4 GB PCIe add-on graphic controller |
| Monitor | 1 x 27″ LED-backlit 4K UHD monitor |
| Remote Management | 1 x Server remote management with onboard Dedicated server Management NIC (DMN) RJ-45 supporting IPMI 2.0 standards |
| Operating System | 1 x CentOS 7.6 64-bit OS and open source job scheduler with queue management software installation |
| Enclosure Form Factor and Power supply Unit | 1 x 2U rackmount enclosure with hot-pluggable redundant 80+ Platinum rated power supply unit with 2U rackmount railkit |
| Cables & Power cord | 2 x India style 3-pin (Plug-D) IA6A3 6A 250V power cord with IEC60320-C13 power connector |
| Keyboard and Mouse | 1 x Wireless keyboard with QWERTY keys layout 1 x Wireless 2-button optical scroller mouse |
| Ports | 7 x USB ( 2.0 & 3.0); 2 x LAN |
| Warranty | 3 years onsite warranty on the supplied hardware |
