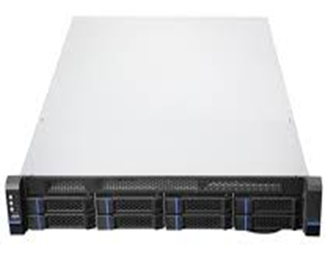

Resilienté® D62R12H208MD4 2U Rackmountable Server
Resilienté® D62R12H208MD4 2U Rackmountable Server
System Specifications
The following table lists the system specifications for Resilienté® D62R12H208MD4 Server
| Components | Specification |
| Chipset | 1 x Dual socket server board featuring Intel C624 chipset |
| Processor Installed | 2 x Intel scalable processor Gold 6142 [Specification per processor: 16 cores | 32 threads | 2.60 GHz base .. 3.70 GHz max Turbo frequency | 22 MB cache | 3 x UPI links | 150 W TDP | upto 2666 MHz memory speed | 48 x PCIe Gen3.0 lanes | 2 x AVX-512 FMA | 14 nm Intel “Skylake” micro-architecture] |
| Processor Thermal Kit | 2 x LGA3647 actively air-cooled thermal kit square ILM 150W |
| Memory Installed | 1 x 16 GB DDR4 ECC registered 2666 MHz memory module
1 x 64 GB DDR4 ECC registered 2666 MHz memory module |
| OS Boost Device | 1 x NVMe PCIe Gen3.0 OS boot device |
| Storage Drive Installed | 1 x 2.4 TB SAS 12 Gb/s 10,000 RPM 2.5″ (SFF) hard disk drive |
| RAID Controller | 1 x PCIe SAS 12 Gb/s RAID controller supporting RAID levels 0, 1, 5, 10, 50, 60; 96W RAID battery cache unit |
| Ethernet Controller | 1 x Ethernet controller 1000Base-T (1 GbE) Cu RJ-45 – 4-ports |
| Enclosure Form Factor and Power supply Unit | 1 x 2U rackmount enclosure with 8 x 2.5″ hot-swap drive backplane with railkit and 800W 80+ Platinum rated 1+1 redundant power supply units |
| Cables & Power cord | 2 x India style 3-pin (Plug-D) IA6A3 6A 250V 1.8M power cord with IEC60320-C13 connector |
| Warranty | 3 years onsite standard warranty 8 x 5 NBD support on supplied hardware |
