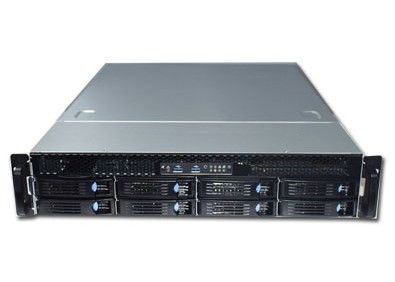

Resilienté® D62R12H204ME0 Server
Resilienté® D62R12H204ME0 Server
System Specifications
The following table lists the system specifications for Resilienté® D62R12H204ME0 SERVER
| Components | Specification |
| Chipset | 1 x Dual socket server board featuring Intel C624 chipset |
| Processor Installed | 2 x 2nd generation Intel Xeon scalable processor Silver 4216 [Specifications per processor: 16 cores | 32 threads | 2.10 GHz base .. 3.20 GHz max Turbo frequency | 22 MB cache | 2 x 9.6 GT/s UPI links | upto 2400 MHz memory speed | 100 W TDP | 6 x memory channels | 2S scalability | upto 48 PCIe Gen3.0 lanes | socket P-0, LGA3647 layout | 1 x AVX-512 FMA unit | 14 nm Intel “Cascade Lake” micro-architecture] |
| Processor Thermal Kit | 2 x Socket P-0, LGA3647 actively air-cooled thermal kit square ILM |
| Memory Installed | 2 x 64 GB [128 GB] DDR4 ECC registered memory module 2400 MHz |
| Storage Drive Installed | 2 x 600 GB SAS 12 Gb/s 10,000 RPM 2.5″ (SFF) hard disk drive |
| Optical Drive | 1 x Optical drive DVD+RW drive USB external |
| Raid Controller | 1 x PCIe SAS 12 Gb/s RAID controller with 1 GB cache |
| Fiber Channel HBA | 1 x PCIe dual-port 16 Gb/s Fibe r Channel HBA 4 x SFP+ – LC transceiver 2 x 5M LC – LC OM3 cable |
| Ethernet Controller | 1 x Ethernet controller 10GBase-T (10 GbE) Cu RJ-45 dual-port onboard 1 x Ethernet controller PCIe add-in dual-port 10 Gb/s Direct-Attached |
| Transceivers and cables for Ethernet | 2 x SFP+ – LC transceiver 2 x 5M LC – LC OM3 cable |
| Enclosure Form Factor and Power supply Unit | 1 x 2U rackmountable enclosure with server grade redundant power supply |
| Cables & Power cord | 2 x 3-pin India style (Plug-D) IA6A3 6A 250V 1.8M power cord with IEC60320-C13 connector |
| Warranty | 5 years onsite warranty on supplied hardware against manufacturing defects |
