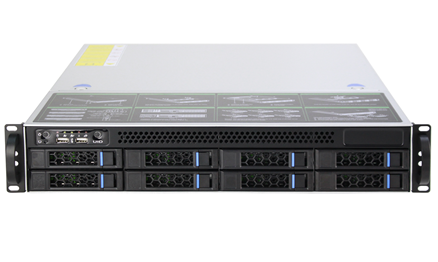

Resilienté® D62R12H308MH4 2U COMPUTE NODE
Resilienté® D62R12H308MH4 2U COMPUTE NODE
System Specifications
The following table lists the system specifications for Resilienté® D62R12H308MH4 COMPUTE NODE
| Components | Specification |
| Chipset | 1 x Dual-socket server board featuring Intel C621A chipset supporting Socket : 2 x Socket LGA 4189 DIMM Slots: 16 x DDR4 Memory DIMM slots Expansion Slots: 4 x PCIe Gen4.0 x16 [Electrical and mechanical] | 2 x PCIe Gen4.0 x8 [Electrical and mechanical] Ports: 1 x DB15 analog VGA M.2: 2 x M.2 slots supporting NVMe drives Ethernet: 2 x 10GBase-T (10 Gb/s) Cu RJ-45 Ethernet controller Management: 1 x IPMI v2.0/Redfish RJ45 Dedicated IPMI LAN port |
| Processor Installed | 2 x Intel 3rd Generation Xeon Scalable Platinum 8368Q Processor [Specification per processor: 38 Cores | 76 Threads | 2.60 GHz Processor Base Frequency | 3.70 GHz Max Turbo Frequency | 57 MB Cache | 270 W TDP] |
| Processor Thermal Kit | 2 x 2U Active LGA4189 air-cooled thermal kit |
| Memory Installed | 16 x 64 GB DDR4 ECC Registered 3200 MHz Memory |
| Storage Drive Installed | 1 x 2TB SATA Enterprise Class 6 Gb/s 7200 RPM 3.5” hard disk drive |
| Raid Controller | 1 x SAS 12 Gb/s hardware RAID controller card with 2GB cache supporting RAID levels 0, 1, 1+0, 5 and 6 addressing all 8 bays of enclosure |
| Ethernet Controller | 1 x Dual port 10G Base-T adapter |
| Server management | 1 x IPMI v2.0/Redfish RJ45 Dedicated IPMI LAN port |
| Enclosure Form Factor and Power supply Unit | 1 x 2U Rack mount chassis with 8 x 3.5” / 2.5” (dual-profile) SAS 12 Gb/s hot-swap drive bays, hot-swap cooling fans , 1600 watts 80 plus Platinum rated redundant power supply unit in 1+1 mode and full length rail kit set |
| Cables & Power cord | 2 x India style 3-pin (Plug-D) IA6A3 6A 250V 1.8M power cord with IEC60320-C13 connector |
| Warranty | Three years 8 x 5 NBD onsite warranty on supplied hardware against manufacturing defects |
