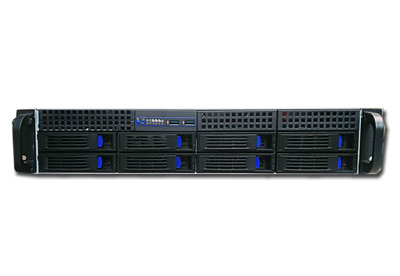

Resiliente® D62R12N208FD4 2U Server
Resiliente® D62R12N208FD4 2U Server
System Specifications
The following table lists the system specifications for Resiliente® D62R12N208FD4 Server
| Components | Specification |
| Chipset | 1 x Server board featuring Intel C624 chipset |
| Processor Installed | 1 x 2nd generation Intel Xeon scalable processor Gold 5218N [16 cores | 32 threads | 2.30 GHz base .. 2.70 GHz max Turbo frequency | 22 MB cache | 2 x 10.4 GT/s UPI links | 110 W TDP | 6 x memory channels | 4S scalability | upto 48 x PCIe Gen3.0 links | socket P-0, LGA3647 layout | 1 x AVX-512 FMA unit | 14 nm Intel “Cascade Lake” micro-architecture] |
| Processor Thermal Kit | 1 x Socket P-0, LGA3647 actively air-cooled thermal kit square ILM |
| Memory Installed | 1 x 64 GB DDR4 ECC registered 2666 MHz Memory |
| Storage Drive Installed | 4 x 2.4 TB SAS 12 Gb/s 10,000 RPM 2.5″ (SFF) hard disk drive |
| RAID Controller | 1 x PCIe SAS 12 Gb/s RAID controller supporting RAID 0, 1, 5, 10 |
| Network controller | 1 x Ethernet 1000Base-T (1 GbE) Cu RJ-45 ports (4) |
| Management Port | 1 x Server management compliant to IPMI standards with dedicated management NIC |
| Enclosure Form Factor and Power supply Unit | 1 x 2U rackmount enclosure with railkit and 800W 80+ Platinum rated fixed power supply |
| Cables & Power cord | 1 x India style 3-pin (Plug-D) IA6A3 6A 250V 1,8M power cord with IEC60320-C13 connector |
| Operating System | 1 x Windows Server 2019 Standard edition OEM |
| Warranty | 3 years onsite warranty on supplied hardware against manufacturing defects with defective media retention service |
