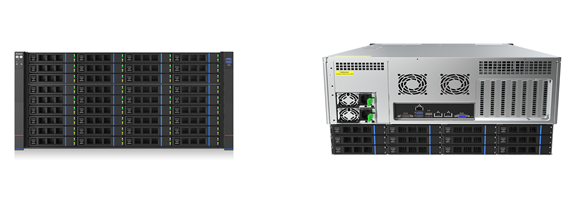

Resilienté® D62R16H348MF4 JBOD STORAGE SERVER
Resilienté® D62R16H348MF4 JBOD STORAGE SERVER
System Specifications
The following table lists the system specifications for Resilienté® D62R16H348MF4 JBOD STORAGE SERVER
| Components | Specification |
| Chipset | 1 x Intel 3rd Gen Dual Socket Motherboard |
| Processor Installed | 2 x 3rd generation Intel Xeon scalable processor Silver 4314 [16 cores | 32 threads | 2.40 GHz base .. 3.40 GHz max Turbo frequency | 24 MB cache | 2 x 10.4 GT/s UPI links | 135 W TDP | upto 2666 MHz memory speed | 8 x memory channels | 2S scalability | socket P-4, LGA4189 | 2 x AVX-512 FMA units | 10 nm Intel “Ice Lake” micro-architecture] |
| Memory Installed | 8 x 32 GB [256 GB] DDR4 Registered ECC @ 3200 MHz Memory |
| Storage Drive Installed | 2 x 1TB 12Gb/s SAS 10K RPM Hard Disk Drive with RAID-1 22 x 18 TB NLSAS 12Gb/s 7200RPM Hard Disk Drives (20+2) |
| Raid Controller | 1 x 12Gbps 8GB Cache RAID Controller supporting 128 Drives in RAID Levels of 0, 1, 1+0, 5, 6 , 50, 60 |
| Ethernet Controller | 1 x Ethernet controller dual-port 10GBase-T (10 GbE) Cu RJ-45 1 x Ethernet controller Dual Port 10Gb/s SFP+ ports |
| Server management | 1 x Server management with dedicated management port |
| Transceivers and cables | 4 x Transceiver SFP+ SR supporting 10Gb/s transfer rates 2 x 2Mts FC LC- LC cable |
| Enclosure Form Factor and Power supply Unit | 1 x 6U Chassis supporting 48 x 3.5″ HDD Bays with suitable power supply unit |
| Cables & Power cord | 2 x India style 3-pin (Plug-D) IA6A3 6A 250V 1.8M power cord with IEC60320-C13 connector |
| Warranty | 5 years onsite warranty on supplied hardware against manufacturing defects |
