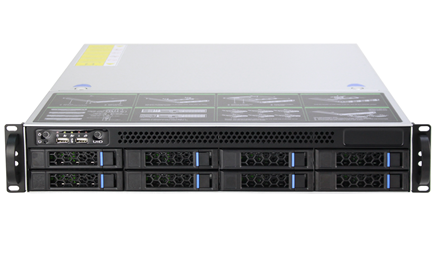

Resilienté® D62R12H308MD4 2U Rackmountable Server
Resilienté® D62R12H308MD4 2U Rackmountable Server
System Specifications
The following table lists the system specifications for Resilienté® D62R12H308MD4 2U Rackmountable Server
| Components | Specification |
| Chipset | 1 x Dual-socket server board featuring Intel C624 chipset with 16 DIMM slots expandable upto 2TB memory |
| Processor Installed | 2 x 2nd generation Intel Xeon scalable processor Silver 4214R [Specifications per processor: 12 cores | 24 threads | 2.40 GHz base .. 3.50 GHz max Turbo frequency | 16.5 MB cache | 2 x 9.6 GT/s UPI links | 100 W TDP | upto 2400 MHz memory speed | 6 x memory channels | 2S scalability | PCIe Gen3.0 x48 lanes | socket P-0, LGA3647 layout | 1 x AVX-512 FMA unit | VT-x, VT-d, EPT support | 14 nm Intel “Cascake Lake -Refresh” micro-architecture] |
| Processor Thermal Kit | 2 x Socket P-4, LGA3647 actively air-cooled thermal kit square ILM |
| Memory Installed | 2 x 64 GB DDR4 ECC registered 2400 MHz memory module |
| Storage Drive Installed | 2 x 256 GB SATA 6 Gb/s 2.5″ enterprise edition solid state drive 3 x 10 TB SATA 6 Gb/s enterprise edition 3.5″ (LFF) 7,200 RPM hard disk drive with 256 MB buffer (configured in a RAID 5 mode) |
| Raid Controller | 1 x PCIe 8-port SAS 12 Gb/s RAID controller supporting RAID levels 0, 1, 5, 10, 50, 60 expandable to 64 drives with 2 GB RAID cache; additional feature support of Online RAID Level Migration (ORLM), Online Capacity Expansion (OCE) and global/ dedicated hot-spare capabilities |
| Ethernet Controller | 1 x Ethernet controller dual-port 10GBase-T (10 GbE) Cu RJ-45 backward compatible to 1000Base-T (1 GbE) standards |
| Server management | 1 x IPMI v2 and Redfish compliant server management with dedicated NIC supporting media redirection feature and complete IP remote KVM capabilities |
| Enclosure Form Factor and Power supply Unit | 1 x 2U rackmount enclosure with 8 x 3.5″/2.5″ (combo) hot-swap drive bays with cooling kit; 800W 1+1 redundant 80 PLUS Platinum rated with railkit |
| Cables & Power cord | 2 x India type (Plug-D) IA6A3 6A 250V 1.8M power cord with IEC60320-C13 connector |
| Operating system pre-loaded | 1 x Rocky Linux 8.7 64-bit preinstalled and configured |
| Ports | 4 x USB (2.0 & 3.0) ; 2 x LAN |
| Expansion Slots | 2 x PCIe x8 Gen 3 ; 3 x PCIe x16 Gen 3 |
| Warranty | 5 years 9 x 5 NBD onsite warranty on supplied hardware against manufacturing defects |
