Resilienté® DZEN3R12H208MC4 Server
Resilienté® DZEN3R12H208MC4 Server
System Specifications
The following table lists the system specifications for Resilienté® DZEN3R12H208MC4 Server
| Components | Specification |
| Chipset | 1 x Dual socket server board featuring AMD SoC |
| Processor Installed | 2 x 3rd generation AMD EPYC 7763 processor [Specifications per processor: 64 cores | 128 threads | 2.45 GHz base .. 3.50 GHz max Boost clock | 256 MB L3 cache | 280 W TDP | socket SP3, LGA4094 layout | 2S scalability | upto 128 lanes of PCIe Gen4.0 | 8 x memory channels | 3200 MHz max. memory speed | 7 nm AMD “Zen 3 – Milan” micro-architecture] |
| Processor Thermal Kit | 2 x Socket SP3, LGA4094 layout 2U actively air-cooled thermal kit |
| Memory Installed | 16 x 64 GB [1024 GB] DDR4 ECC registered 3200 MHz memory module |
| Storage Drive Installed | 2 x 1.92 TB NVMe M.2 solid state drive 4 x 2.4 TB SAS 12 Gb/s 10,000 RPM 2.5″ (SFF) hard disk drive |
| Raid Controller | 1 x SAS 12 Gb/s RAID controller featuring 4 GB cache supporting RAID levels 0, 1, 10, 5, 6 |
| Ethernet Controller | 1 x Ethernet controller (onboard) dual-port 1000Base-T (1 GbE) Cu RJ-45 1 x Ethernet controller (add-in) PCIe 10GBase-T (10 GbE) SFP+ |
| Server management | 1 x Server remote management with dedicated management port |
| Transceivers and cables | 2 x Transceiver SFP+ SR supporting 10Gb/s transfer rates 2 x SFP+ SR fiber optic cable 2M |

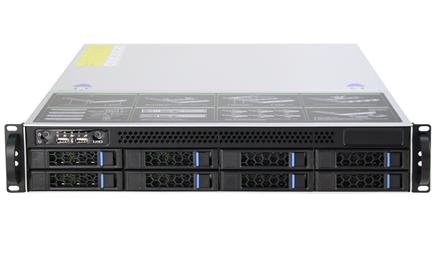

| Enclosure Form Factor and Power supply Unit | 1 x 2U rackmount enclosure with 8 x 3.5″/2.5″ dual-profile hot-swap drive bays with 1+1 redundant 80+ Platinum rated power supply unit and railkit |
| Cables & Power cord | 2 x 3-pin India style (Plug-D) IA6A3 6A 250V 1.8M power cord with IEC60320-C13 connector |
| Warranty | 5 years onsite warranty on supplied hardware against manufacturing defects |
