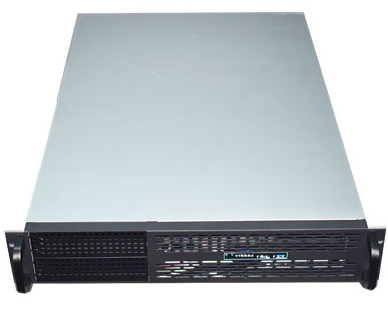

Resilienté® DZEN3R12N306MC8 2U Rackmountable Server
Resilienté® DZEN3R12N306MC8 2U Rackmountable Server
System Specifications
The following table lists the system specifications for Resilienté® DZEN3R12N306MC8 Server
| Components | Specification |
| Chipset | 1 x Dual socket server board featuring AMD SoC |
| Processor Installed | 2 x 3rd generation AMD EPYC 7003 series processor 7313 [Specifications per processor: 16 cores | 32 threads | 3.0 GHz base .. 3.70 GHz max Boost clock | 128 MB L3 cache | 155 W TDP (base) | LGA4094, socket SP3 | 2S scalability | 128 x PCIe Gen4.0 lanes | 7nm AMD “Milan” micro-architecture] |
| Processor Thermal Kit | 2 x LGA4094, socket SP3 actively air-cooled thermal kit |
| Memory Installed | 4 x 64 GB [256 GB] DDR4 ECC registered memory module |
| Storage Drive Installed | 2 x 480 GB SATA 2.5″ Enterprise Solid State Drive on RAID 1 |
| Ethernet Controller | 1 x Ethernet controller 1000Base-T (1 GbE) Cu RJ-45 (2) ports 1 x Ethernet controller 10G SFP+ (2) ports PCIe add-in adapter |
| Transceivers and cables | 4 x SFP+ to LC transceiver 2 x LC – LC OM3 multi-mode fiber optic cable 10 Metres |
| Enclosure Form Factor and Power supply Unit | 1 x 2U rackmount enclosure with hot-swap redundant power supply units and rackmount railkit |
| Cables & Power cord | 2 x India style 3-pin (Plug-D) IA6A3 6A 250V 1.8M with IEC60320-C13 connector |
| Warranty | 5 years onsite warranty on supplied hardware against manufacturing defects |
