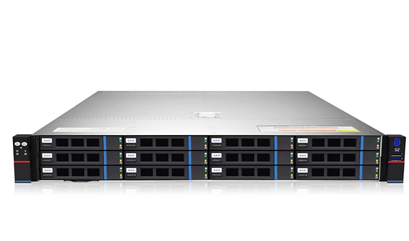

Resilienté® DZEN3R12H312MG3 Rack Compute Server
Resilienté® DZEN3R12H312MG3 Rack Compute Server
System Specifications
The following table lists the system specifications for Resilienté® DZEN3R12H312MG3 Rack Compute Server
| Components | Specification |
| Chipset | 1 x Dual socket server board with SoC |
| Processor Installed | 2 x 3rd generation AMD EPYC 7763 processor [Specifications per processor: 64 cores | 128 threads | 2.45 GHz base .. 3.50 GHz max Boost clock | 256 MB L3 cache | 280 W TDP | socket SP3, LGA4094 layout | 2S scalability | upto 128 lanes of PCIe Gen4.0 | 8 x memory channels | 3200 MHz max. memory speed | 7 nm AMD “Zen 3 – Milan” micro-architecture] |
| Processor Thermal Kit | 2 x Socket SP3, LGA4094 layout 2U actively air-cooled thermal kit |
| Memory Installed | 16 x 32 GB [512 GB] DDR4 ECC registered 3200 MHz module [8 channels / processor x 2 processors = 16 DIMMs to be populated for 100% fully balanced memory configuration) |
| Storage Drive Installed | 2 x 1.92 TB / 2 TB M.2 NVMe SSD 4 x 10 TB SAS 12 Gb/s 7,200 RPM 3.5″ (LFF) HDD |
| Raid Controller | 1 x PCIe SAS 12 Gb/s RAID controller with 8 GB cache suporting RAID levels 0, 1, 10, 5, 6 |
| Ethernet Controller | 1 x Ethernet controller 1000Base-T (1 GbE) Cu RJ-45 (2) ports onboard 1 x Ethernet controller 10GbE SFP+ (1) port PCIe add-on |
| Server management | 1 x Server management with dedicated NIC |
| Transceivers and cables | 2 x Transceiver SFP+ to LC 10 Gb/s 1 x LC – LC SR OM3 MM Fiber optic cable |
| Enclosure Form Factor and Power supply Unit | 1 x 2U – 12 x 3.5″/2.5″ (dual-profile) enclosure with 1400W 1+1 Redundant Power Supply 80+ Gold rated |
| Cables & Power cord | 2 x India style 3-pin (Plug-D) IA6A3 6A 250V 1.8M power cord with IEC60320-C13 connector |
| Warranty | 5 years onsite warranty on supplied hardware against manufacturing defects |
