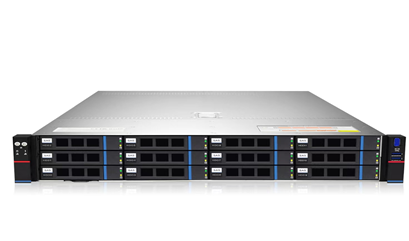

Resilienté® A13D24R3B1R3D 2U Server
Resilienté® A13D24R3B1R3D 2U Server
System Specifications
The following table lists the system specifications for Resilienté® A13D24R3B1R3D Server
| Components | Specification |
| Chipset | 1 x Dual socket server board featuring AMD SoC |
| Processor Installed | 2 x 4th generation AMD EPYC 9954 processor [Specifications per processor: 64 cores | 128 threads | 3.10 GHz base .. 3.75 GHz max Boost clock | 256 MB L3 cache | 360 W TDP | socket SP5 | 2S scalability | upto 128 lanes of PCIe Gen5.0 | 7 nm AMD “Genova” micro-architecture] |
| Processor Thermal Kit | 2 x Socket SP5 layout 2U actively air-cooled thermal kit |
| Memory Installed | 12 x 64 GB DDR5 ECC registered 4800 MHz modules |
| Storage Drive Installed | 4 x 8 TB SAS 12 Gb/s 7,200 RPM 3.5″ HDD in RAID 5 volume |
| Raid Controller | 1 x SAS 12 Gb/s RAID controller featuring 4 GB cache supporting RAID levels 0, 1, 10, 5, 6 |
| Ethernet Controller | 1 x Ethernet controller 10GBase-T (10 GbE) dual-port Cu RJ-45 |
| Remote Management | 1 x Server remote management with dedicated management port |
| Operating System | RedHat Enterprise Linux 9.4 64-bit |
| Enclosure Form Factor and Power supply Unit | 1 x 2U rackmount enclosure with 8 x 3.5″/2.5″ dual-profile hot-swap drive bays with 1200W 1+1 redundant 80+ Gold rated power supply unit and railkit |
| Cables & Power cord | 2 x 3-pin India style (Plug-D) IA6A3 6A 250V 1.8M power cord with IEC60320-C13 connector |
| Warranty | 3 years onsite warranty on supplied hardware against manufacturing defects |
